| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Counter Boring | Drill Mill | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Slotting | | Tool Type | Single sided Inserts |

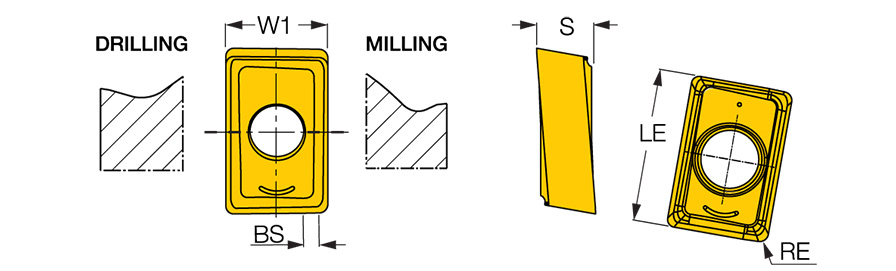

| Corner Radius (RE) | 0.5 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Insert Width (W1) | 6.3 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3.15 mm | Cutting Edge Effective Length (LE) | 9.4 mm |
| Wiper Edge Length (BS) | 0.8 mm | Measurement Type | Metric |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Presvlaka | IC830 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.23 mm/tooth |
Product Features

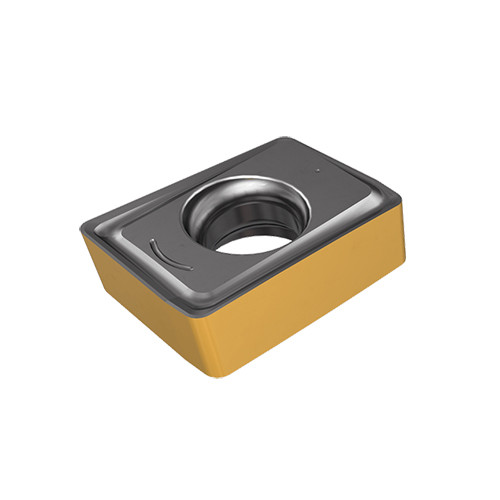

| FamilyDesc | Double-sided rectangle inserts with 4 cutting edges with 2 center cutting edges for drilling and 2 peripheral cutting edges for milling | FamilyName | MDR ANMU PNTR |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.0031
Name
Milling Indexable Inserts
FamilyName
MDR ANMU PNTR
BrandName
Iscar
